Learn how to define tools that let the agent trigger client-side effects.
Client effects push model-generated “side-effect events” to the frontend for execution without interrupting model reasoning, and they return a server-configured default value to the model. Use them for UI updates, focus, highlighting, animations, and state sync—situations that only affect the frontend and do not depend on a returned value. Client effect middleware

​
Core capabilities

  • No interruption: does not wait for the frontend to respond
  • One-way notification: model → frontend UI
  • Automatic return value: uses the middleware-configured Result
  • Strong UI control: the model can “drive UI changes”

​
Workflow

  1. Configure the Client Effect middleware on the server
  • Define Tool Name / Description / Arguments Schema
  • Configure a fixed Result
  1. Model triggers the effect
  • The LLM calls the effect tool (for example, show_station)
  1. Frontend receives and executes
  • ChatKit sends the event via onEffect
  • The frontend performs the UI side effect (state update, focus, etc.)
  1. Model continues reasoning
  • It does not wait for frontend completion

​

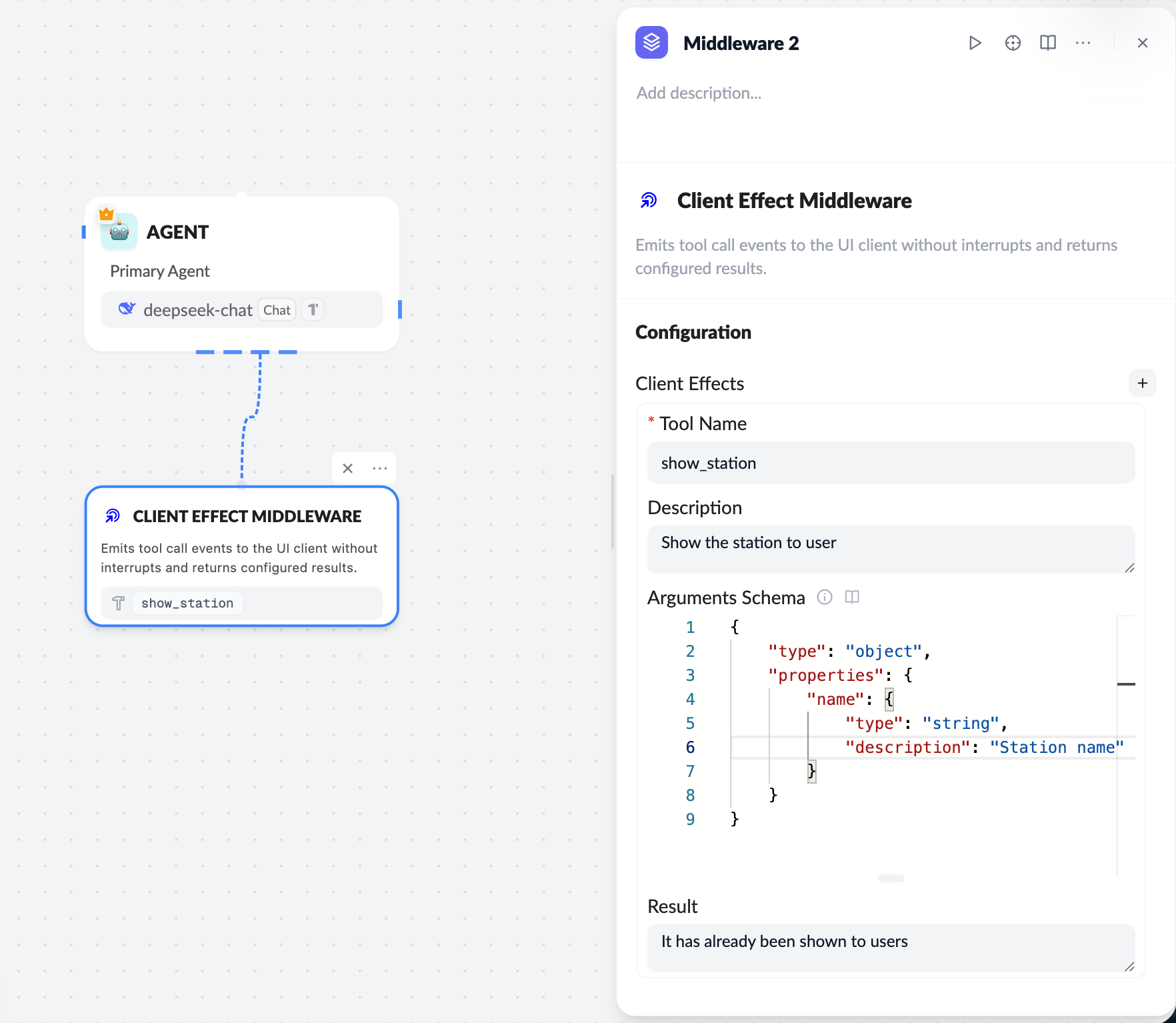

Server configuration essentials

Tool Name
show_station
Arguments Schema (example) The schema must follow the JSON Schema spec:
{
  "type": "object",
  "properties": {
    "name": {
      "type": "string",
      "description": "Station name"
    }
  }
}
Result
It has already been shown to users

​
Frontend (React) integration

Register onEffect in useChatKit:
const handleClientEffect = useCallback(
  ({ name, data }) => {
    if (name === 'update_mindmap' && data?.mindmap) {
      setMindmap(convertMindmapFromSnake(data.mindmap));
    }

    if (name === 'focus_node' && data?.nodeId) {
      focusNode(data.nodeId);
    }
  },
  []
);

useChatKit({
  ...
  onEffect: handleClientEffect,
});

​
Client Tool vs. Client Effect

ItemClient ToolClient Effect
Interrupts reasoning✅ Yes❌ No
Waits for frontend result✅ Yes❌ No
Dynamic result✅ Yes❌ No (fixed Result)
Best forState reads / user confirmationUI updates / display / focus

​
Best practices

  • Effects handle UI side effects only; keep business decisions elsewhere
  • name must exactly match the server tool name
  • data should include only the minimal fields needed by the frontend
  • Avoid long-running or blocking tasks inside effects
Client effects let the model declaratively drive UI behavior, which is key for building visual, highly interactive agent experiences.
